CTI Pro75 Hardware Casing with Closure Set GEN 2

Description

Now shipping GEN 2 cases and hardware.

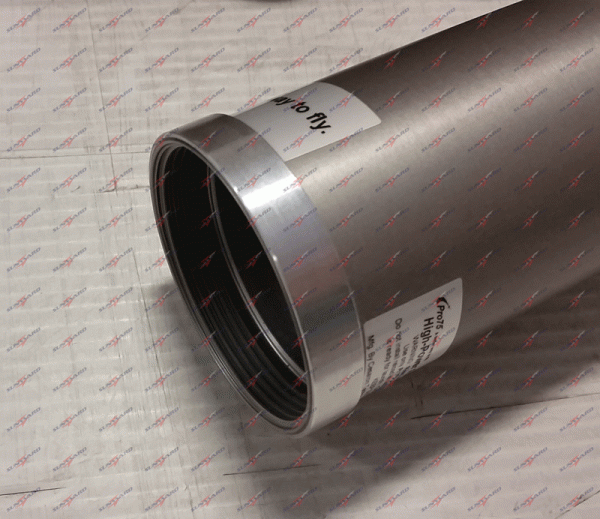

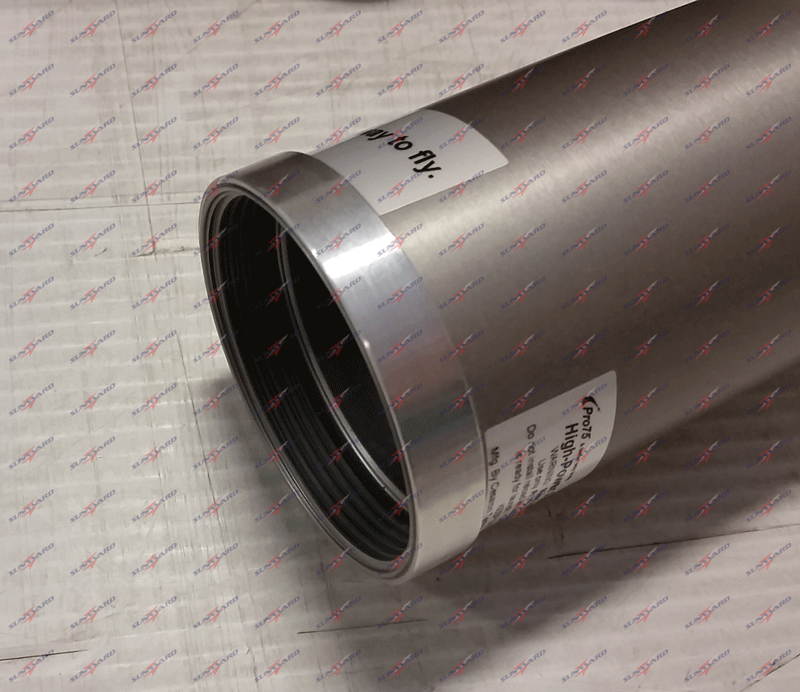

Threads are not compatible between the 2 types of cases. The only items that are interchangeable are the Forward Closure and the Nozzle Holder.

We ship GEN 2 unless specified in the description.

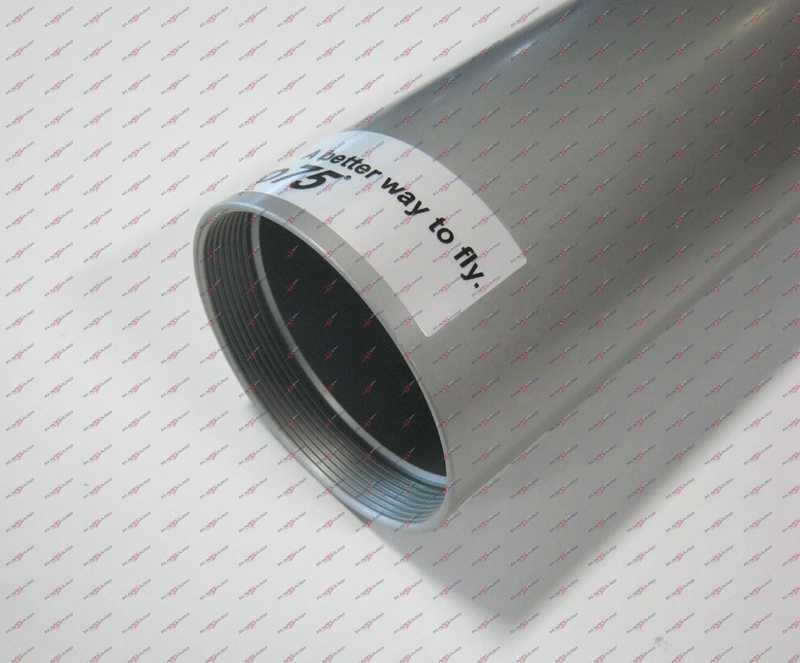

GEN 2 cases have a one piece case with no added ring on the thrust end.

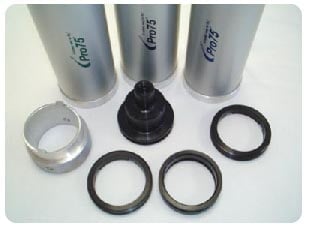

Pro75® rocket motor hardware casing set is CNC machined from 6061-T6 aluminum alloy and anodized for corrosion protection. 5 components make up a complete Pro75 motor hardware set – the motor casing, the forward closure, the nozzle holder (rear closure), and the threaded retaining rings (2) for each end of the case. An accessory wrench is available which make fitting and removing the retaining rings a snap.

Motor cases and closure components are available separately or in economical sets. The forward closure, nozzle holder and retaining rings can be interchanged between the five motor casing sizes.

Pro75 Hardware Casing Sets include:

• Motor Case
• Forward closure
• Nozzle holder
• Forward and Rear retaining rings

Pro75® motor casings are available in six sizes to fit reloads from K through M class – please refer to the motor specification page to see which casing is required for each reload.

Hardware Casing Sets available in:

• 2 Grain Case Hardware Set
• 3 Grain Case Hardware Set
• 4 Grain Case Hardware Set
• 5 Grain Case Hardware Set
• 6 Grain Case Hardware Set
• 6GXL Grain Case Hardware Set

Also available are individual cases and components – sold separately.

Instructions PDF: Pro75 Hardware Instructions
Dimensions PDF: Pro75 Hardware Dimensions

Item: P75 Hardware Casing Sets

Contents subject to change.
